# High Voltage Power supplies

Here is a list of high voltage power supplies with schematics and construction details, going from simple to complex. Be careful if building any of these, high voltage can be dangerous!

### 1. Simple flyback driver 10-15kV

Probably the very first high voltage device built by any enthusiast. It uses a power transistor (2n3055) and two coils: a primary and a feedback on a flyback ferrite core.

Schematics and details:

### 2. Push Pull (dual) 2n3055 flyback driver

You can use 2 x 2n3055 transistors in a better circuit that provides more power . However this too is prone to failure due to the transistor limitations.

A large heatsink is required as well.

### 3. Voltage multipliers

If the flyback doesn’t provide the voltage you require, a solution is to build a voltage multiplier. You can hook it to any flyback secondaries that doesn’t have built-in rectification (diodes or multipliers).
A very easy to build design is the Villard cascade voltage multiplier:

To understand how it works, you can read more on it here. I’ve built mine in a plastic CD box, this way I can add liquid wax for better insulation. Here are some interesting tests using the multiplier:

### 4. 555 Timer flyback driver

This circuit uses a 555 timer IC to pulse a power transistor with square wave at a frequency that is set by the capacitor and the potentiometers. It is a very efficient circuit, assuming the frequency is correctly adjusted.

Circuit diagram:

See it in action:

### 4. 555 Timer dual ignition coil 30KV

An even better approach for those that seek more power and higher voltages is using ignition coils from cars. I’ve got 2 from a scrapyard, and connected them in anti parallel:

The driver used is the same as above (with a 555 timer), the difference is in using a different pot, resistors and capacitor for another frequency interval, and stronger mosfet, suitable for ignition coils:

Adjusting the frequency with the pot, I got some tick white arcs, similar to those produced by a flyback with a ZVS driver. A good indication of the power running in the system.

### 5. ZVS Flyback driver

A powerful driver with excellent results (no transistor heating, a lot of power pushed), is the ZVS (push/pull) driver, that was described in this article.

Here is the circuit diagram:

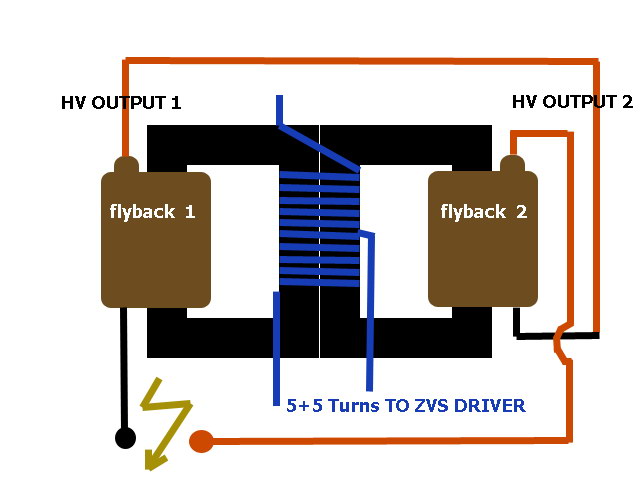

### 6. Dual Flyback driver

ZVS gives a lot of power, but the voltage is not great. You might want to put two flybacks in series, and use 2 separate ZVS drivers, or a single driver with the 5+5 primary coil wrapped around both ferrite cores:

### 7. Tesla Coil

The ultimate in high voltage records, this device was discussed here and here.
Taking advantage of the way the secondary is constructed, several issues are solved by construction: the secondary insulation is trivial.

High frequency Solid state tesla coil (HFSSTC):

More on the HFSSTC here.

To be continued. someday.
